Ion/Ion PRO

Automated External Defibrillators

CHARACTERISTICS

  • Compatible with 3-lead ECG cable.
  • Biphasic shock up to 360 J.
  • IP56 protection index.
  • Weight of only 1.2 Kg.
  • Three different battery options (rechargeable or disposable).
  • Battery charge indicator.
  • Ambient sound recording.
  • Autocheck of functions and battery.
  • Storage of curves and events.
  • Much more economical disposable pads - Not associated with battery or CPR feedback.
  • SoftDEA software included for connection, download and data management via PC (via USB).
  • Easily switch between automatic and manual modes with a simple touch on the screen (Ion PRO).



HIGHLIGHTS

Some items are optional.

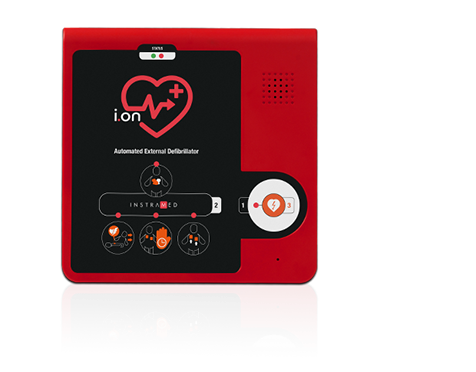

SIMPLE TO USE

It evaluates, with sophisticated sensors, the patient’s condition, considers the clinical variables and automatically applies the most appropriate shock therapy.

It allows any individual with basic training to perform the care of a victim in cardiac arrest, facilitating and multiplying the possibilities of life- saving.

Just press the single front button and follow the guidance by voice and visual indicators.



ADVANCED

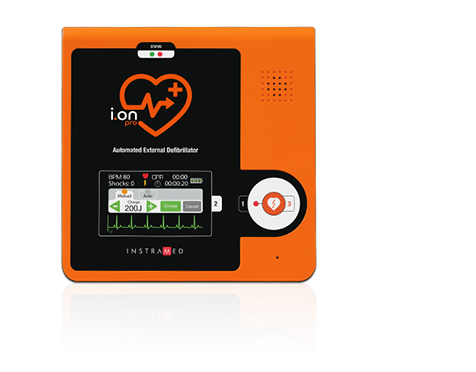

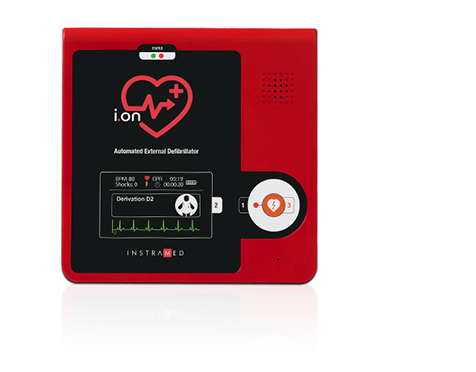

The Ion PRO model adds the flexibility of manual operation, allowing the healthcare professional, based on their experience and the ECG curve shown on the device screen, to choose to personalize the treatment application parameters

In the touch screen with excellent contrast and viewing area, the user selects the manual operation mode and then the charge up to 360 J.

INTELLIGENT

Via the SoftDEA application (included), the Auto-Charge Sequence function can charge preset energies for the first, second and third shocks.

Through the 3-lead ECG cable, the Ion can act as an Automated External Defibrillator or ECG monitor, alarming when it detects a cardiac arrest situation.

It has built-in microphone and internal memory allowing digital storage of up to 10 hours of ambient sound.

RELIABLE

Reliability - Instramed is a brand present in hundreds of medical organizations on more than 60 countries.

Dependable products developed for the reality of emergency care.

A wide network of dealers providing sales and parts, along with the factory-certified technical assistance, provides excellent post- sales service.

With more than 30 years in the business, Instramed is a manufacturer that maintains stock parts and components even for discontinued products.

ADVANCED TECHNOLOGIES

Operation With Just One Button

Biphasic Shock

Charge Auto-Sequencing

Just place the adhesive pads and press the single front button and follow the instructions by means of voice and visual indicators.



The two-phase wave form technology acts on ventricular fibrillation conditions and ventricular tachycardia reversion processes more efficiently, because it allows for the use of lower power, resulting in smaller myocardial lesions after treatment.

New Charge Auto-Sequencing function - When enabled, applies charges pre-configured by the user for the first, second and third shocks without the need to change the selector manually.



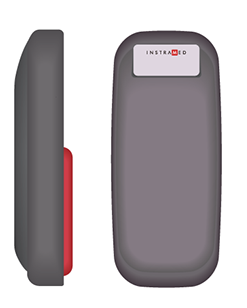

CPR MAESTRO

TECHNICAL INFORMATION

GENERAL SPECIFICATIONS  (Ion/ION/PRO)

  • Dimensions:
  • 225 mm (W).
  • 225 mm (H).
  • 69 mm (D).
  • Weight:
  • 1.2 Kg (basic) to 1,9 Kg (complete).
  • Non-rechargeable internal battery:
  • Type: Manganese Lithium Dioxide (LiMnO2) 18V, 1400 mAh (optional 1) or 2800 mAh (optional 2).
  • Duration of optional battery 1 (1400 mAh): more than 80 shocks in 200 J or 6 hours of continuous monitoring.
  • Duration of optional battery 2 (2800 mAh): more than 300 shocks in 200 J or 15 hours of continuous monitoring.
  • Rechargeable internal battery:
  • Type: Li-Ion, 14.4 VDC 4.0 A/h.
  • Duration: 18 hours in heart rate recognition mode (fully charged battery), or a minimum of 400 shocks in 200 J.
  • Time for battery full charge (fully discharged): 5 hours.
  • Battery power supply charger:
  • Power 100 - 220 V/50-60 Hz.
  • Consumption (maximum): mains supply 1 A.
  • Output: 16.8 VDC, 1 A.
  • Use only source manufactured by Instramed.
  • Battery storage:
  • Storing the battery for a long period of time in temperatures higher than 35°C (95°F) will reduce its capacity and shelf life.
  • Pre-adjusted defibrillation scales:
  • Adult (automatic): 1º shock - 150 J; following shocks - 200 J.
  • Adult (manual): up to 360 J.
  • Child: 50 J.
  • Defibrillation scales adjusted by user (via SoftDEA):
  • Adult (non-rechargeable battery 1400 mAh):
  • Adult (non rechargeable battery 2800 mAh or rechargeable): scales between 120 J and 360 J.
  • Internal memory storage:
  • 100 events or 2 hours of ECG recording.
  • Ambient sound storage:
  • Up to 10 hours (optional).
  • Protection rating:
  • IP56.
  • Classification:
  • Class II, internally energized equipment.
  • Electrical insulation:
  • CF type.
  • Operating mode:
  • Continuous operation.
  • Maximum time from rhythm analysis beginning to discharge readiness:
  • 200 J: 20 seconds.
  • 360 J: 25 seconds.
  • Maximum time from rhythm analysis beginning to full discharge readiness:
  • 200 J: 25 seconds.
  • 360 J: 35 seconds.
  • Insulation method from main power supply (when with rechargeable battery):
  • Flexible cable with a mains plug.
  • Non-frequent use equipment:

Comply with the requirements for non-frequent use equipment as specified in NBR IEC 60601-2-4 standard.



ENVIRONMENTAL SPECIFICATIONS

  • Temperature:
  • Operational: 0 to 50ºC.
  • Storage: -20 to 50ºC.
  • Humidity:
  • Operational: 10 to 95% RH, without condensation.
  • Storage: 10 to 95% RH, without condensation.
  • Altitude:
  • Recommended to use in altitudes lower than 2000 meters.



DEFIBRILLATOR

  • Waveform:
  • Biphasic truncated exponential. Wave shaped parameters adjusted according to the patient’s impedance.
  • Shock application:

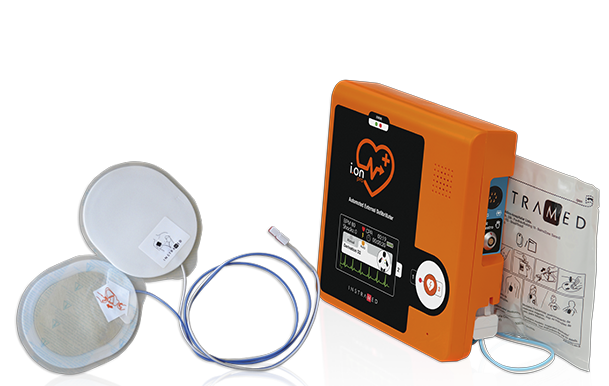

  • By means of multifunctional adhesive pads.
  • Commands:
  • Front panel button: on/off.
  • Touchscreen: allows for the selection of manual mode and defining energy scales.
  • Scales for defibrillation:
  • Adult: 150 to 360 J.
  • Child: 10, 20, 30, 40 or 50 J.
  • Adults/children selection:
  • Automatic due to the size of the pads.
  • Charge command:
  • Automatic after identifying arrhythmias that should receive shock.
  • Shock command:
  • Front panel button, when blinking.
  • Maximum time from rhythm analysis beginning to discharge readiness:
  • 200 J: 20 seconds.
  • 360 J: 25 seconds.
  • Maximum charging time
    (rechargeable battery):
  • Rechargeable battery
  • 50 J:   < 2 seconds.
  • 150 J: < 3 seconds.
  • 200 J: < 4 seconds.
  • 270 J: < 5 seconds.
  • 360 J: < 6 seconds.
  • Non-rechargeable battery (1400 mAh):
  • 50 J:   < 3 seconds.
  • 150 J: < 8 seconds.
  • 200 J: < 11 seconds.
  • Non-rechargeable battery (2800 mAh):
  • 50 J:   < 2 seconds.
  • 150 J: < 5 seconds.
  • 200 J: < 6 seconds.
  • 270 J: < 8 seconds.
  • 360 J: < 10 seconds.
  • Pads size:
  • Adult = area: 82 cm2 (32.3 in2).
  • Child = area: 30 cm2 (11.8 in2).
  • Pads cable length:
  • 2 meters.
  • Maximum output voltage:
  • 2000 V.
  • Maximum output current:
  • 80 A (25 Ω).



OTHER SPECIFICATIONS (Ion PRO)

  • Comands:
  • Touchscreen: allows for the selection of manual mode and defining energy scales.
  • Scales for defibrillation (Manual mode):
  • Adult: scales between 120 J to 360 J.
  • Child: 10, 20, 30, 40 or 50 J.



STANDARDS

  • IEC 60601-1
  • IEC 60601-1-2
  • IEC 60601-1-6
  • IEC 60601-1-8
  • IEC 60601-1-9
  • IEC 60601-2-4 or equivalent IECs.
